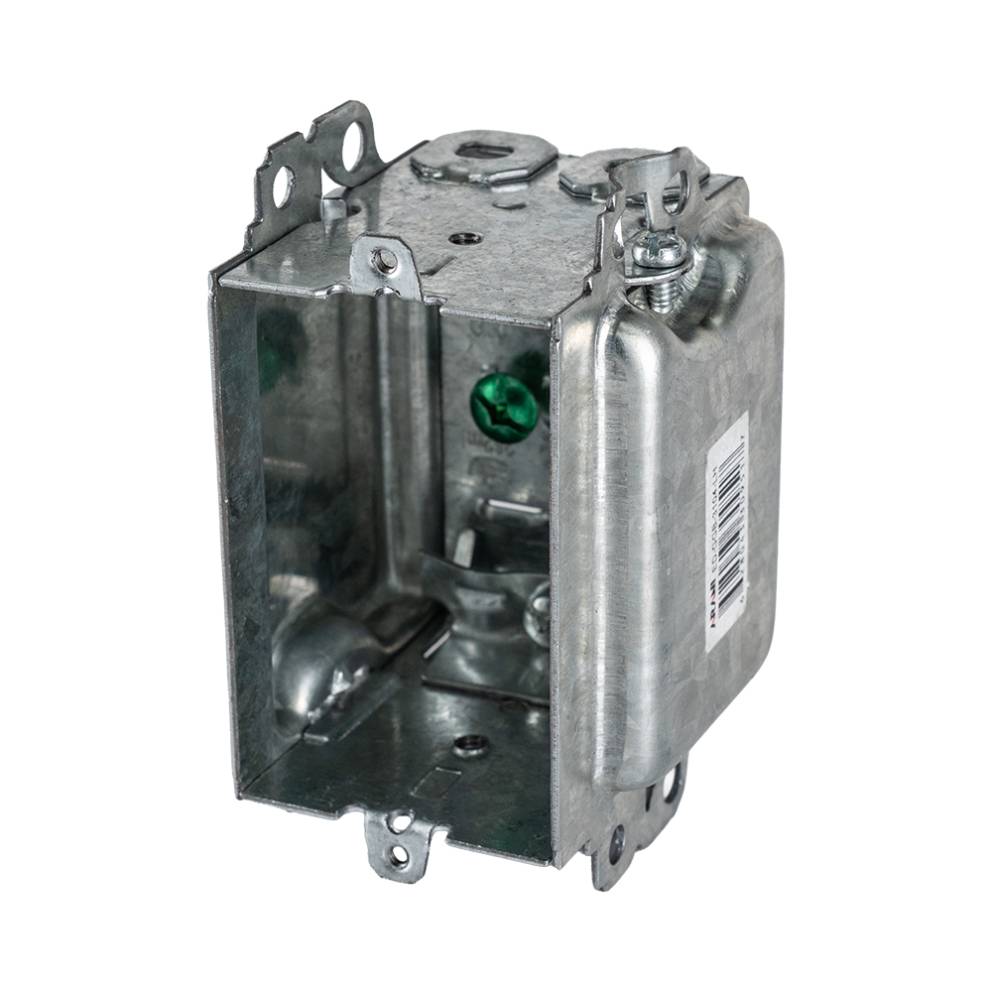

Arani 3104-LH gangable bubble box, 2-1/2 in deep, 16 cu in, no ears, three-quarter view with rounded side gussets

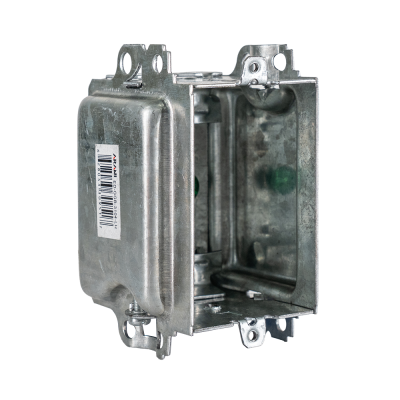

Arani 3104-LH gangable bubble box, 2-1/2 in deep, 16 cu in, no ears, rear three-quarter view with barcode label

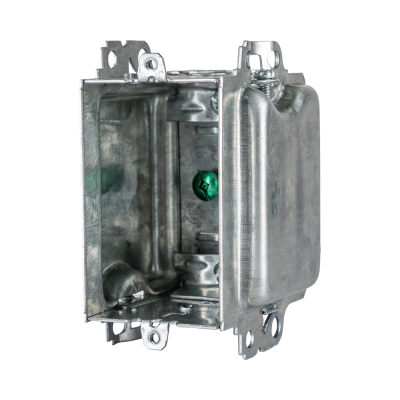

Arani 3104-LH gangable bubble box, 2-1/2 in deep, 16 cu in, no ears, three-quarter view with ribbed rounded side wall

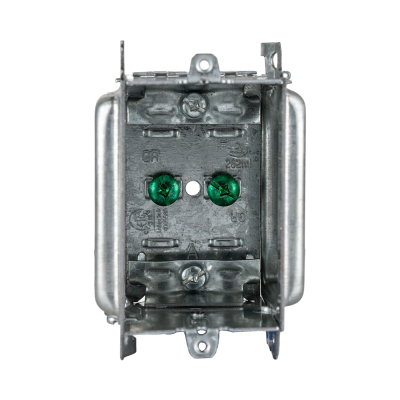

Arani 3104-LH gangable bubble box, 2-1/2 in deep, 16 cu in, no ears, front view with green grounding screws

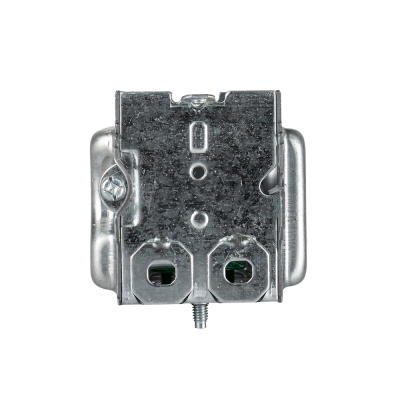

Arani 3104-LH gangable bubble box, 2-1/2 in deep, 16 cu in, no ears, bottom view with two clamp openings and centre nail

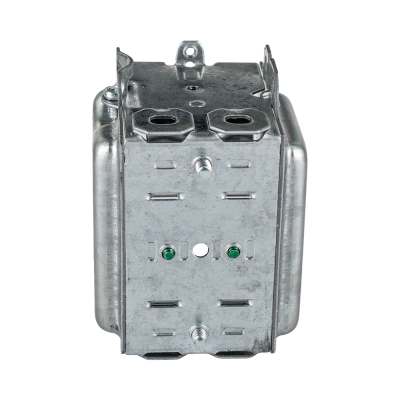

Arani 3104-LH gangable bubble box, 2-1/2 in deep, 16 cu in, no ears, rear view: rear panel with clamp openings
Arani 3104-LH gangable bubble box, 2-1/2 in deep, 16 cu in, no ears, three-quarter view with rounded side gussets
Arani 3104-LH gangable bubble box, 2-1/2 in deep, 16 cu in, no ears, rear three-quarter view with barcode label
Arani 3104-LH gangable bubble box, 2-1/2 in deep, 16 cu in, no ears, three-quarter view with ribbed rounded side wall
Arani 3104-LH gangable bubble box, 2-1/2 in deep, 16 cu in, no ears, front view with green grounding screws
Arani 3104-LH gangable bubble box, 2-1/2 in deep, 16 cu in, no ears, bottom view with two clamp openings and centre nail
Arani 3104-LH gangable bubble box, 2-1/2 in deep, 16 cu in, no ears, rear view: rear panel with clamp openings

3104-LH - 2 1/2" DEEP BUBBLE W/CLAMPS

SKU: ED-GGB-3104-LH

Electrical Testing Laboratories logo

This device box is a gangable box, which means it can be joined with other boxes to form larger configurations. This feature is particularly useful in electrical installations where multiple devices or connections need to be housed together.

Key Features:

- Material: Steel
- Dimensions: H 3 in, W 2 in, D 2-1/2 in
- Volume: 16 cu in
- Clamps for non-metallic sheathed cable, Extended sides for external nailing.
- Installation: Specifically designed for installation with wood stud
- Gangable

Specs sheet

Download the specifications sheet.

Ordering Info

Series: Gangable Device Boxes Gangable Device Boxes

Size: 3” x 2” 3” x 2”

Gangable: Yes Yes

Warranty: 1 Year(s) 1 Year(s)

Certifications: cETL cETL

Ordering Code: ED-GGB-3104-LH ED-GGB-3104-LH

Performance Data

Voltage Classification: Regular (120V) Regular (120V)

Physical Data

Body material: Galvanized Steel Galvanized Steel

Weight: 7.9 oz 224 g

Width: 2 in 5.08 cm

Height: 3 in 7.62 cm

Metal Thickness: 0.047 in 1.2 mm

Depth: 2 1/2 in 6.35 cm

Clamp type: Non Metallic Sheated Clamp (NMD90) Non Metallic Sheated Clamp (NMD90)

Raised ground screw: No No

Number of gangs: 1 Gang(s) 1 Gang(s)

Number of knockouts/Inlets: 4 4

Volume: 16 cu. in. 262 ml

Weight: 0.494 lb(s) 0.224 kg(s)
